Industrial Automatic Leafy Vegetable Cleaning Washing Machine
Air bubble vegetable washer; vegetable washing machine
The vegetable raw materials could get a valid rinse after air bubbling, high pressure spraying and surfing. After multi-stage cleaning, heavy impurities sink into bottom of water tank and light impurities are filtered, so that raw materials could be cleaned thoroughly.
  • Product Description

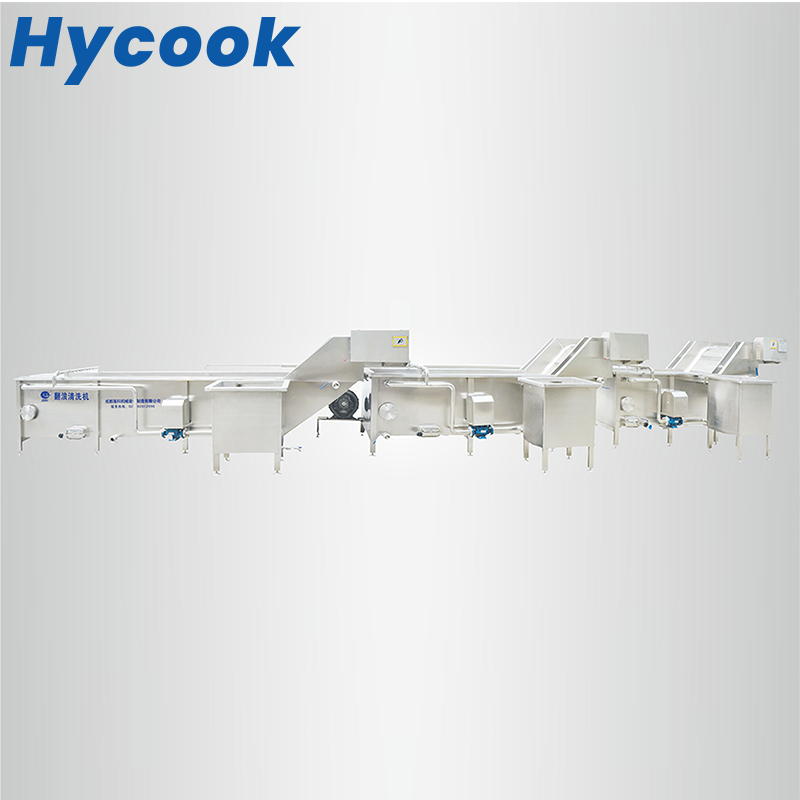

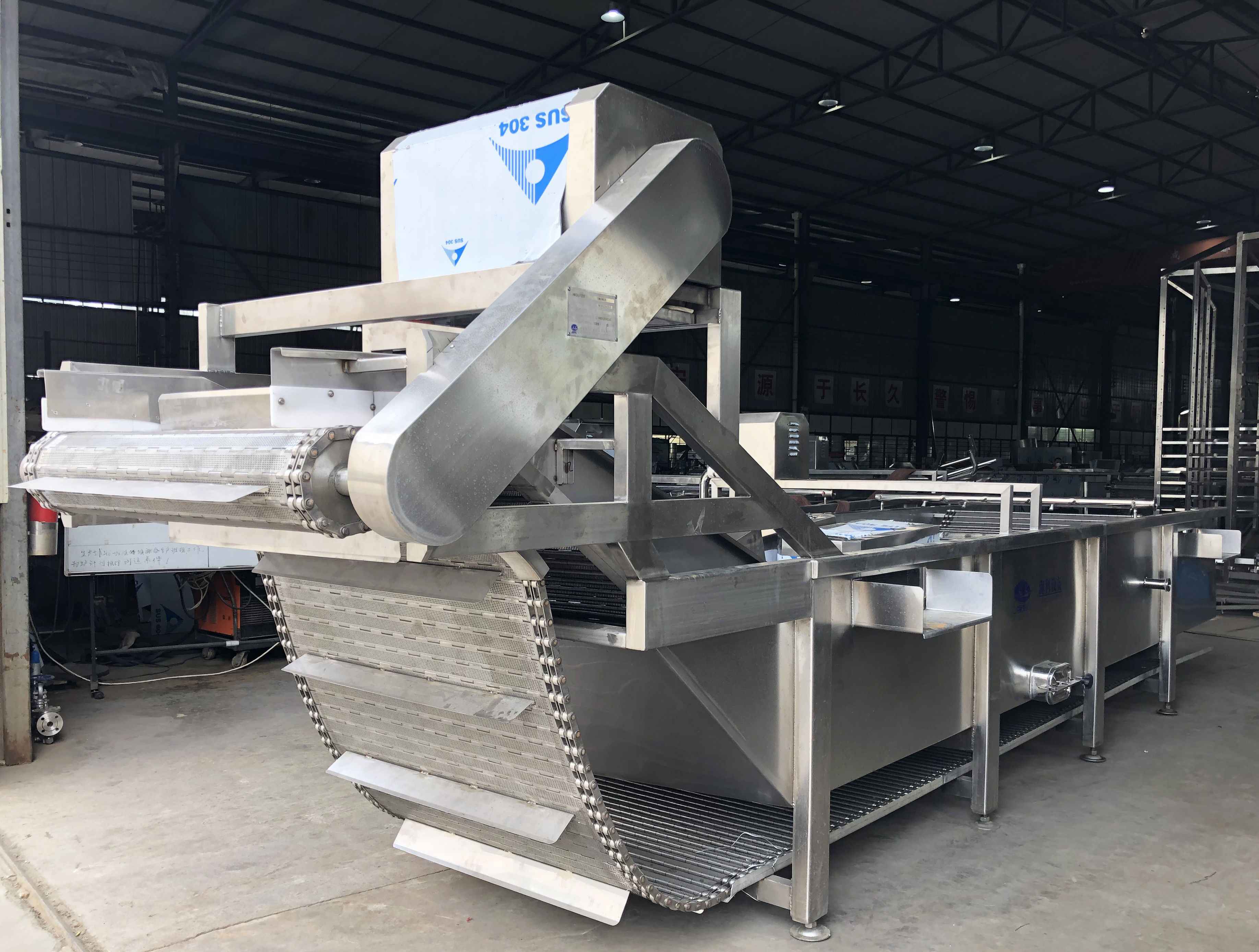

Product Show:


Item
 Specifications
Cleaning line overall dimensions
 14500*2350*1900 mm
First stage equipment dimensions
 5400*2350*1900 mm
Second stage equipment dimensions
 4800*2350*1900 mm
Third stage equipment dimensions
 4300*2350*1900 mm
Conveyor
 Stainless steel 304 scraping belt
Conveyor speed
 4-8 m/min(adjustable)
Voltage
 380 V-50 HZ(customized)
Single motor power
 1.1 KW
Single air pump power
 2.2 KW
Single water pump power
 3 KW
Productivity
 1 ton/h
PLC
 SIEMENS with Ethernet interface




Main Features:


1. Top-level cleanliness could be achieved after high pressure water spray flushing and bubble-driven tumbling.

2. Continuous multi-stage cleaning could realize labor-saving and high efficiency.

3. Water is recycling after filtration.

4. Impurities collection system are adopted, which is easy to clean the machine.

5. PLC touch screen control and man-machine interface operation are equipped to realize intelligent factory production.
